Hatch ventilation systems

A NEW CONCEPT IN HATCH VENTILATION SYSTEMS

Things have changed, and so have ventilation systems.

New system for extracting exhaust air from buildings or for smoke extract in fires that is compliant with current legislation, using automated motorised hatch systems with a completely hermetic design, next-generation technology and certified for F-400°C/2h or F-300°C/2h operation, depending on its application.

WATER-TIGHTNESS

Prevents heat loss in buildings.

EXTRACT

Extract of exhaust air.

SMOKE

Extracts smoke in fires, in keeping with current legislation.

CUSTOMISATION

Preserves the building finishing elements through the customisation of the hatch.

CERTIFICATION

Brings peace of mind, as the system has been tested and certified by accredited laboratories.

APPLICATION

By means of a motorised and completely water-tight hatch and equipment that is thermally insulated with next-generation materials we can prevent heat loss in the building when the system is not working.

The walls of this equipment are insulated with thermal insulation panels with a thickness of 60 millimetres. This prevents heat loss from inside the building.

The opening of the hatch for air intake and discharge is done with extremely robust motorised actuators with a minimum reliability of 11,000 cycles and an opening time of less than 30s.

Thanks to its design, it can be easily operated in the event of heavy snow or wind loads, in accordance with current legislation.

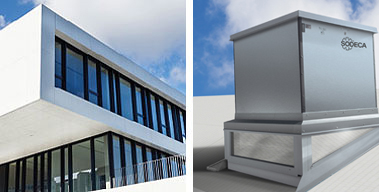

WALL SYSTEM

The WALL system can be used in industrial and commercial facilities as it is easy to install on façades and can be integrated into the building design.

It is especially suitable for smoke exhaust in fires, in accordance with current legislation, using the certified series F-400°C/2H and F-300°C/2h. The system can also be installed with no temperature certification for the extract of exhaust or contaminated air. The WALL systems can also be used to supply air, if necessary. The advantage of being able to automatically close the hatch when the system is not in use brings very important energy savings.

WALL SYSTEM FOR INDUSTRIAL APPLICATIONS ON FAÇADES

WALL SYSTEM FOR APPLICATIONS IN COMMERCIAL FACILITIES ON WALLS

ROOF SYSTEM

The ROOF system is designed for easy installation on building roofs or industrial buildings and permits air or smoke exhaust through the roof in the event of a fire.
